standard 16x4 character LCD module

FOB Reference Price:Get Latest Price
US $1-5 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
HTDisplay
Model Number:
HG160203C-VAJ
Type:
STN, Character
VDD:
5V
Resolution:
16*4
Operating temperature:
-20℃~70℃
V.A.:
87*60
Backlight:
LED
Supply Ability
Supply Ability:
100000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
Beijing/Tianjin
Lead Time :
1month

General Information

This specification is applied to the liquid crystal display. It is a STN negative LCD module and display 16*4 characters. The module built-in controller: ST7066U-OA, St7065C.

General Specification



S/N

Item

Spec

1

Display format

16*4 Dots

2

Display mode

STN

3

Polarizer type

Transmissive negative

4

Driving method

1/16 Duty 1/5 Bias 5V Vop

5

Viewing direction

6 O'Clock

6

Backlight

LED

7

Controller/Driver

ST7066U-OA

8

Interface

 8BP

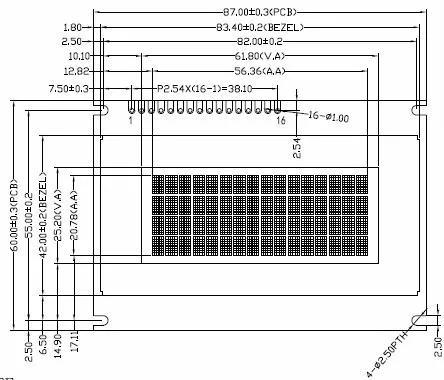

 Mechanical Specification

Item

Specification

Unit

Module Dimension

87(W)*60(H)*12MAX(T)

 mm

Viewing Area

61.8(W)*25.2(H)

 mm

Active Area

56.36(W)*20.78(H)

 mm

Character matrix

16*4

 dots




Company Information
























Our Services

  1.Guarantee time:1 year

 2.We can provide customized service,OEM,ODM service for you!
