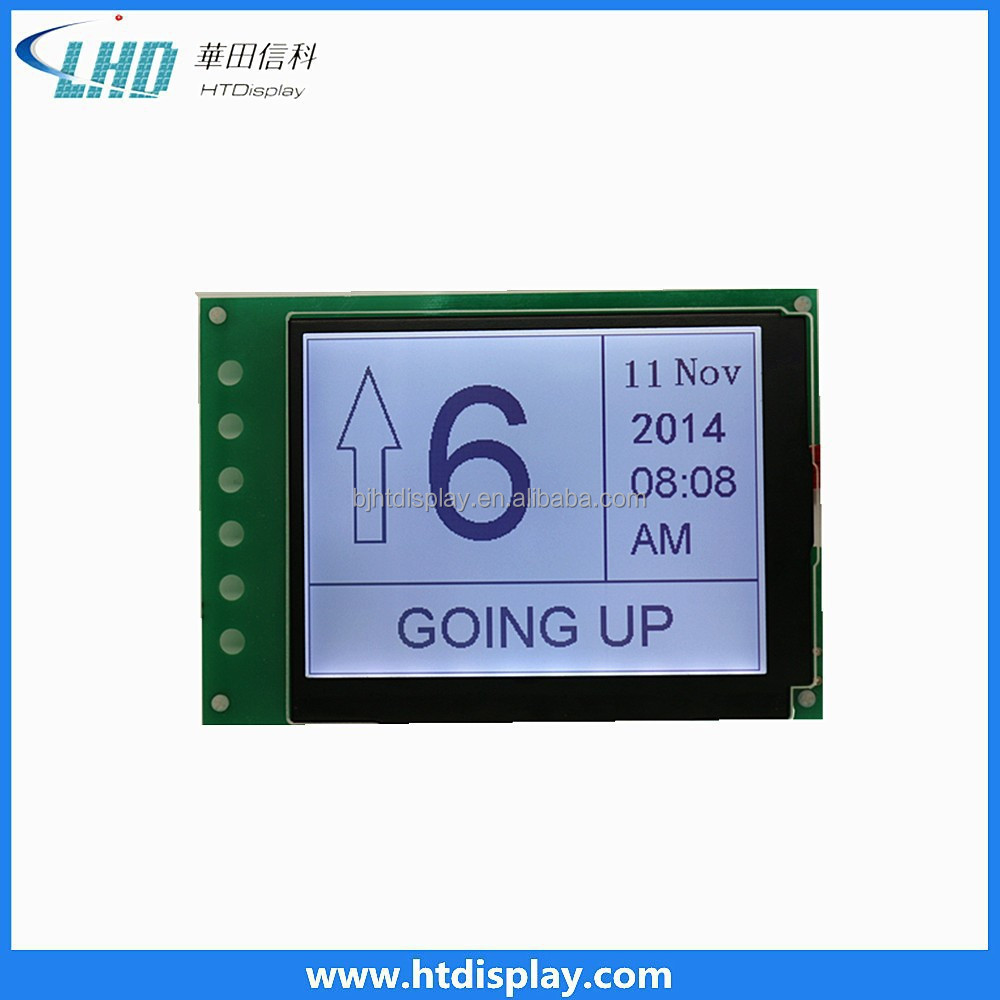

320*240 graphic COG LCD module

FOB Reference Price:Get Latest Price
US $1-500 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
HTDisplay
Model Number:
HG32024033G-VA
Type:
COG, Graphic
VDD:
5V
Work Temperature:
-20℃~70℃
Dots:
320*240
Outline:
160*111.25
V.A.:
117.4*88.4
Controller:
NT7701,NT7702
Backlight:
LED
Supply Ability
Supply Ability:
100000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
Beijing/Tianjin
Lead Time :
1month

General Information

This specification is applied to the liquid crystal display HG32024033G-VA. It's a 320*240 LCD technical specification. The built-in controller:NT7701,NT7702.


General Specification



S/N

Item

Spec

1

Display format

320*240Dots

2

Display mode

FSTN

3

Polarizer type

positive

4

Driving method

------

5

Viewing direction

6 O'Clock

6

Backlight

LED

7

Controller/Driver

NT7701,NT7702

8

Interface

8BP/80







Mechanical Specification

Item

Specification

Unit

Module Dimension

160(W)*111.25(H)

 mm

Viewing Area

117.4(W)*88.4(H)

 mm

Active Area

115.185(W)*86.38(H)

 mm

Dot Size

 ------

 mm

Dot Pitch

 ------

 mm
