segment monochromatic LCD Display

FOB Reference Price:Get Latest Price
US $2-10 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
HTDisplay
Model Number:
HS00A65G-VA
Type:
TN
DISPLAY TYPE::
FSTN/POSITIVE, TRANSFLECTIVE
View direction:
6 o'clock
Storage temperature:
-0℃-60℃
Operation temperature:
-20℃-65℃
Backlight:
without
Driving method:
1/4 duty. 1/3 Bias, 2.85V Vop
polarizer Front:
SMD-1B570TA-45
Controller/Driver:
without
Viewing Area:
54.0(W)*15.0(H)
Outline dimension:
62.5(W)*21.8(H)*2.8(T)
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package and we can meet according to customer's requirement.
Port
Beijing/Tianjin
Lead Time :
Shipped in 45 days after payment
Product Description



   segment monochromatic  LCD Display



 General Information:





This is a pattern LCD module Technical Specification, the module includes LCD without LCD controller.



General Specifications:





1

Display famat

69 pattern(19 SEG + 4COM)

2

Display mode

FSTN,Positive,transflective

3

ROHS compliant

yes

4

Driving method

1/4 duty. 1/3 Bias, 2.85V Vop

5

Viewing direction

6 O'Clock

6

Active Area

51.06(W)*9.0(H)mm

7

Module Dimension

62.5(W)*21.8(H)*2.8(T)mm

8

Viewing Area

54.0(W)*15.0(H)mm






 685



 7

A

Packaging & Shipping



Standard export carton and plastic foam, we can meet according to customer's requirement.

Delivery during one month based on confirming PO.

HT480043J packing drawing



Company Information

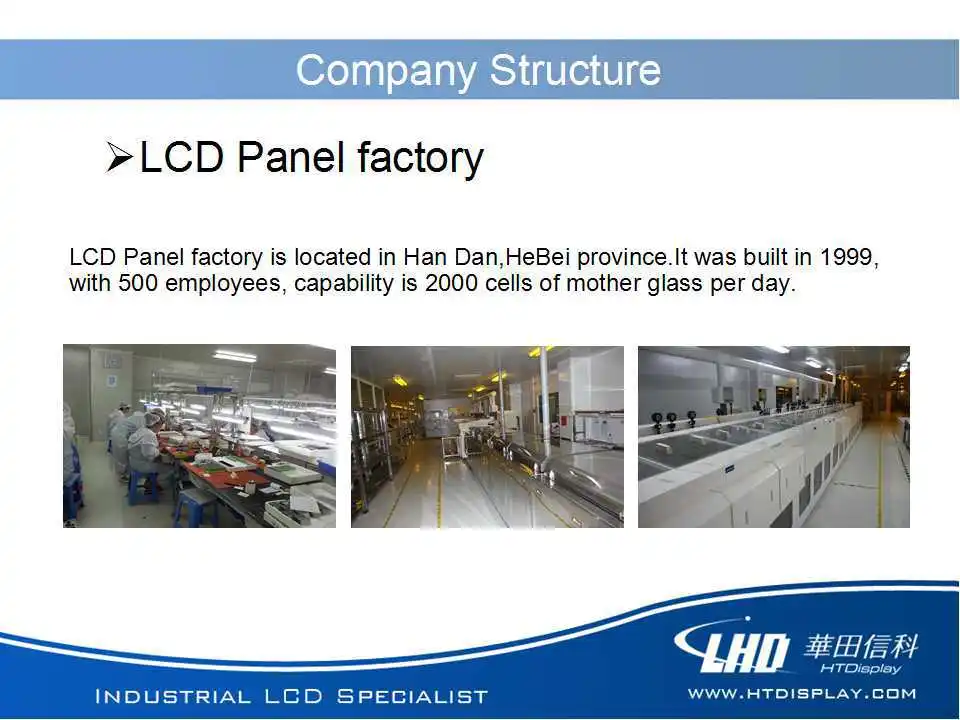

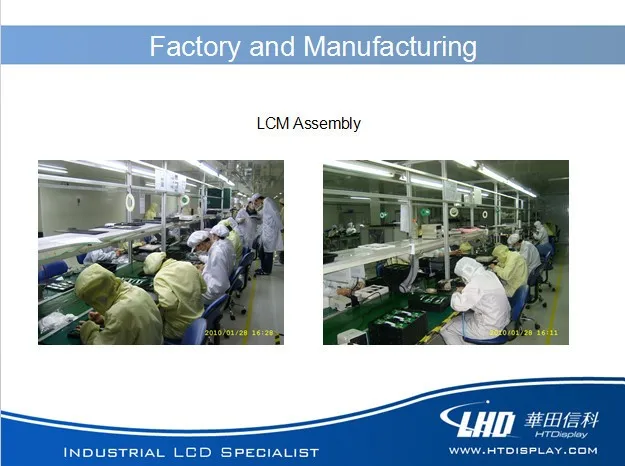

We are a professional manufacturer specializes in  LCD panel of  TN,STN,FSTN,TFT and LCD modules for more than 10 years. We have already obtained  ISO certificate which shows the level of high quality for our products and service. Our products are widely used in industrial meters, vehicle electronics, household appliance, medical equipment, communications and other information terminals.

HTB113n9HXXXXXbSXFXXq6xXFXXXm

6

HTB1mMv_HXXXXXaRXFXXq6xXFXXXsHTB1i4j.HXXXXXaDXFXXq6xXFXXXRHTB12w7cHXXXXXXaXpXXq6xXFXXXh



Our Services

Our Quality:

Quality is the life of our factory.

 We only use best quality (original) components to ensure our product in high level.

 All products we sold out are strictly tested by our QC department.



Warranty:



All LCD products (included brand ones) may have problems after used for a period of time. Normally,we provide 1 year warranty for all products. If without warranty,we can provide a bit spare parts.



Payment:



We accept payment via Paypal,West Union& company T/T account(samples/trial order/quantity order).

 We accept bank transfer for large orders. For small order, you can pay via Paypal&West Union according to your requirement.



 Shipping:



We offer as many shipping options as possible, including DHL, UPS, TNT, FedEx and EMS, etc.

 For large orders, you also can choose to delivery by air or sea,the nearest port is Xingang port.



Contact us:



All emails will be answered within 24 hours. Or you can send me a message by email.





We can provide customized service,OEM,ODM service for you!
