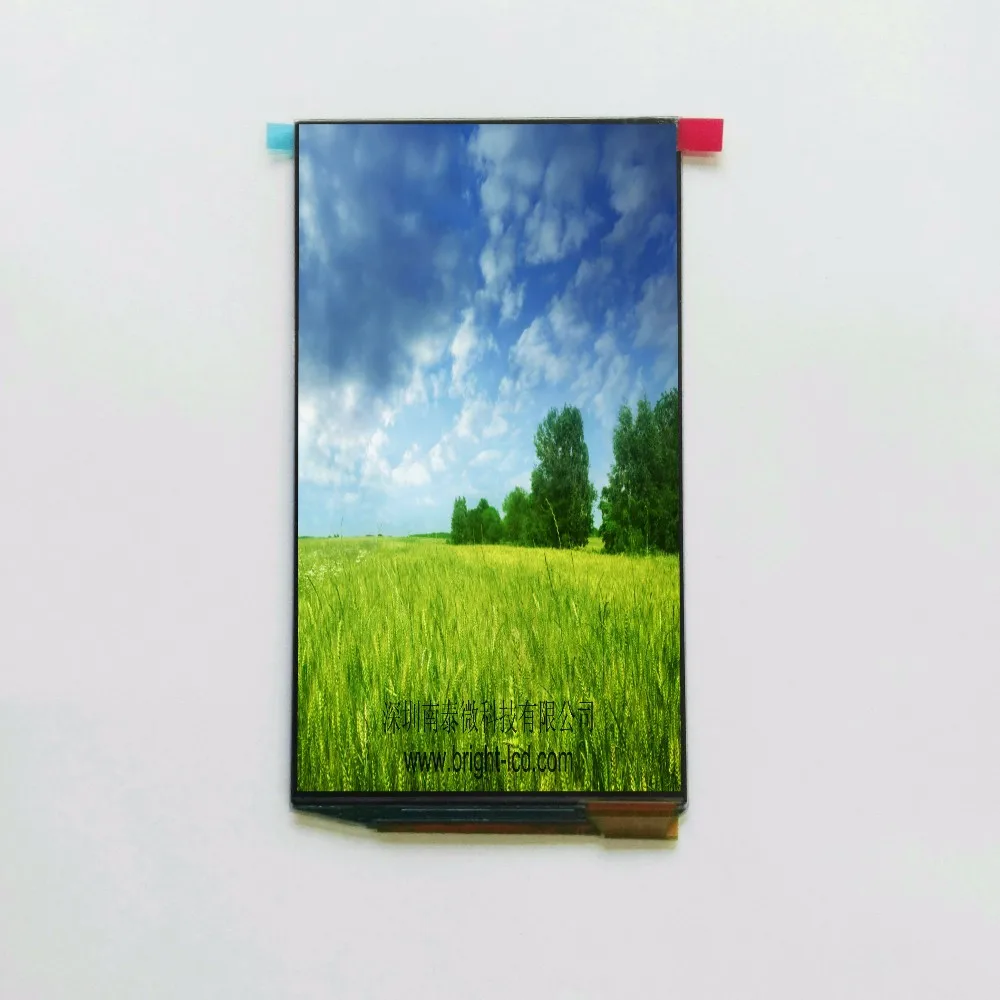

5.5 OLED display and AMOLED + CTP

FOB Reference Price:Get Latest Price
  • 10000 - 49999 Pieces
    $51.88
  • >=50000 Pieces
    $50.88
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Model Number:
AMOLED + CTP
Brand Name:
HT display
Application:
Hightech Product phone
Size:
5.5 inch
Resolution:
1080 RGB x 1920
size:
70.66 *128.36*0.64
Active area:
68.30 x 121.42
Pixel Pitch:
31.62*63.24
Display Function:
Video
Screen Dimension:
5.5 inch
Tube Chip Color:
FULL COLOR
Usage:
OUTDOOR
Pixels:
1080 RGB x 1920
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard packing
HTDisplay co.,Ltd
Gavin
Mobile/What's app:+8618618189601
QQ: 296829930
SKYPE: aj1689gavin
Mail:gavin at htdisplay.com
www.htdisplay.com
Port
beijing
Lead Time :
38
Product Description

Further information: Comparison of CRT, LCD, Plasma, and OLED

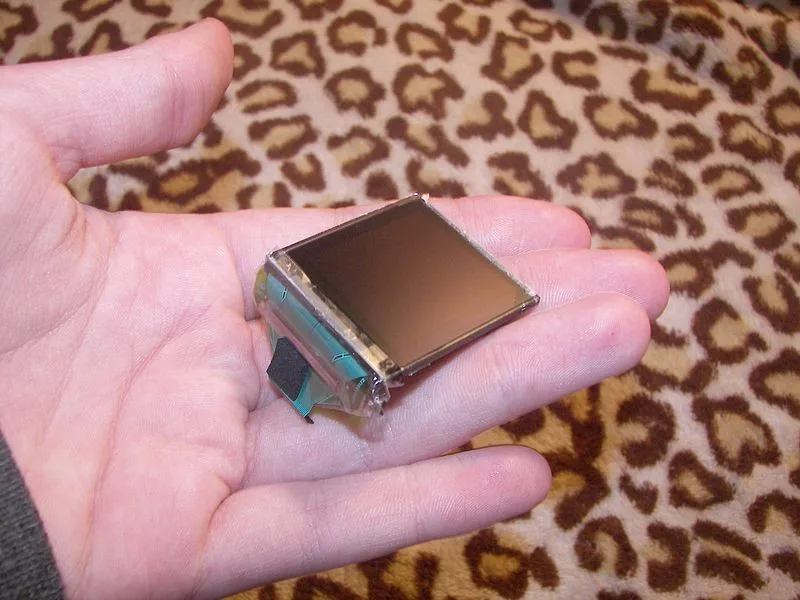

Demonstration of a 4.1" prototype flexible display from Sony
The different manufacturing process of OLEDs lends itself to several advantages over flat panel displays made with LCD technology.
Lower cost in the future
OLEDs can be printed onto any suitable substrate by an inkjet printer or even by screen printing,[67] theoretically making them cheaper to produce than LCD or plasma displays. However, fabrication of the OLED substrate is currently more costly than that of a TFT LCD. Roll-to-roll vapor-deposition methods for organic devices do allow mass production of thousands of devices per minute for minimal cost; however, this technique also induces problems: devices with multiple layers can be challenging to make because of registration—lining up the different printed layers to the required degree of accuracy.
Lightweight and flexible plastic substrates
OLED displays can be fabricated on flexible plastic substrates, leading to the possible fabrication of flexible organic light-emitting diodes for other new applications, such as roll-up displays embedded in fabrics or clothing. If a substrate like polyethylene terephthalate (PET)[68] can be used, the displays may be produced inexpensively. Furthermore, plastic substrates are shatter-resistant, unlike the glass displays used in LCD devices.
Better picture quality
OLEDs enable a greater contrast ratio and wider viewing angle compared to LCDs, because OLED pixels emit light directly. Furthermore, OLED pixel colors appear correct and unshifted, even as the viewing angle approaches 90° from the normal.
Better power efficiency and thickness
LCDs filter the light emitted from a backlight, allowing a small fraction of light through. Thus, they cannot show true black. However, an inactive OLED element does not produce light or consume power, allowing true blacks.[69] Removing the backlight also makes OLEDs lighter because some substrates are not needed. When looking at top-emitting OLEDs, thickness also plays a role when talking about index match layers (IMLs). Emission intensity is enhanced when the IML thickness is 1.3–2.5 nm. The refractive value and the matching of the optical IMLs property, including the device structure parameters, also enhance the emission intensity at these thicknesses.[70]
Response time
OLEDs also have a much faster response time than an LCD. Using response time compensation technologies, the fastest modern LCDs can reach response times as low as 1 ms for their fastest color transition, and are capable of refresh frequencies as high as 240 Hz. According to LG, OLED response times are up to 1,000 times faster than LCD,[71] putting conservative estimates at under 10 μs (0.01 ms), which could theoretically accommodate refresh frequencies approaching 100 kHz (100,000 Hz). Due to their extremely fast response time, OLED displays can also be easily designed to be strobed, creating an effect similar to CRT flicker in order to avoid the sample-and-hold behavior seen on both LCDs and some OLED displays, which creates the perception of motion blur.


Please check the knoledage to click :https://en.wikipedia.org/wiki/OLED

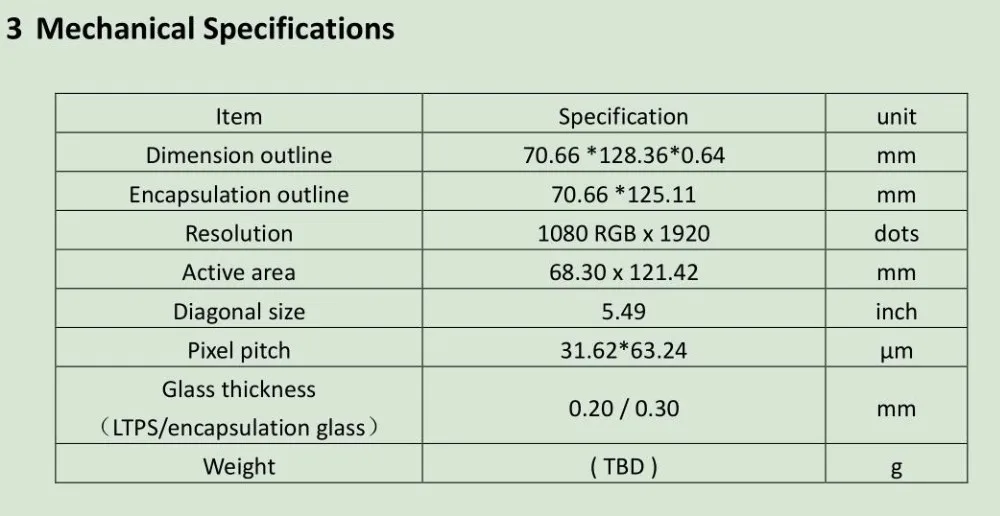

Main parameters

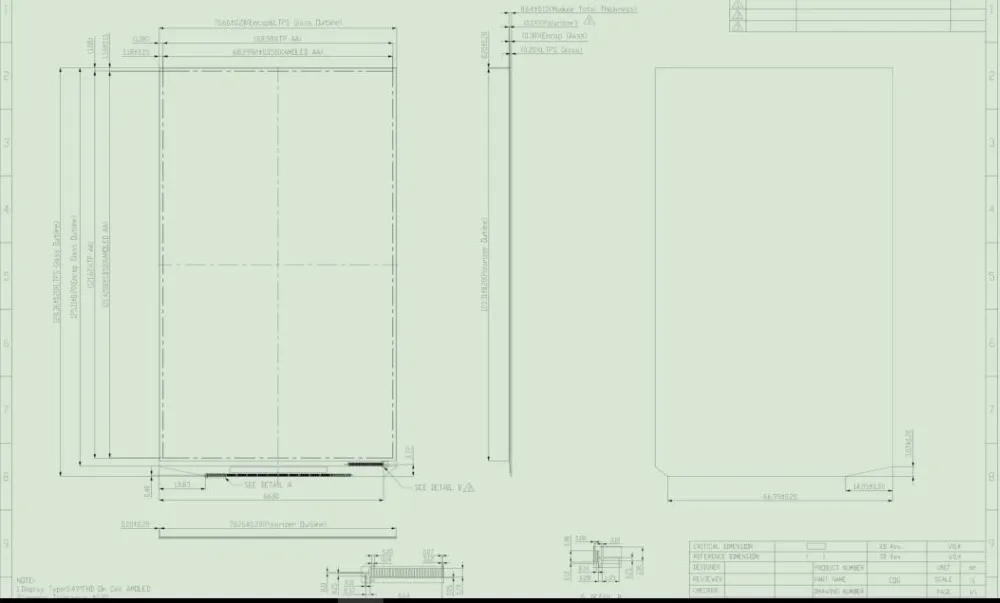

Draft
display

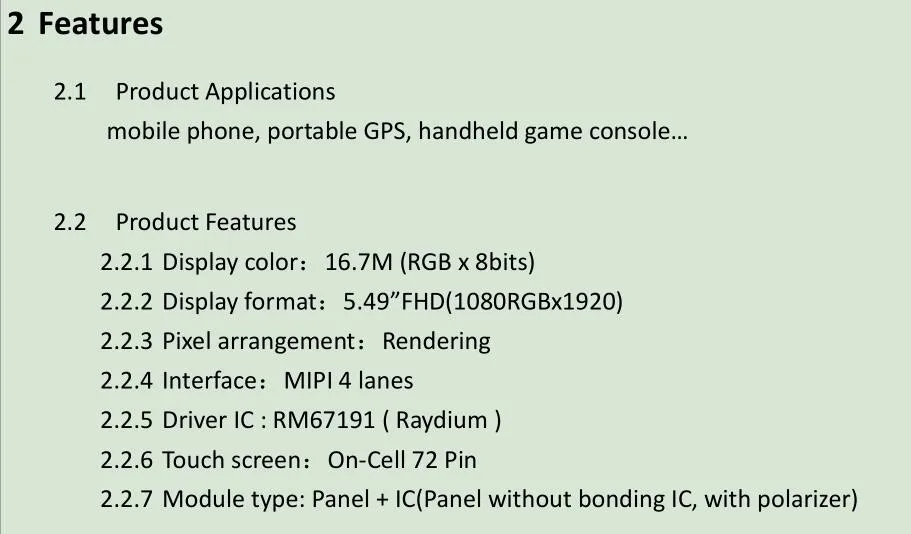

Features

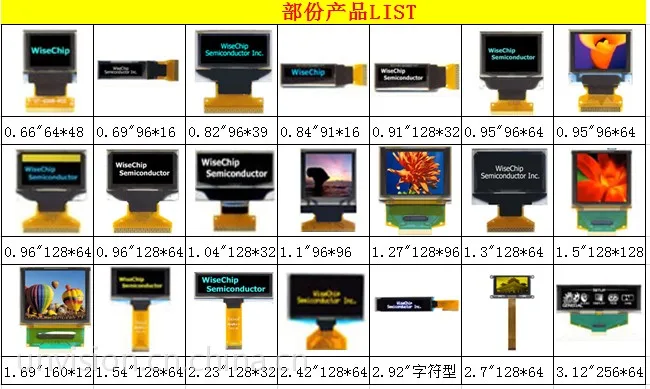

Related Products

                 1.27 oled

       Many types display screens


all small size OLED display screen

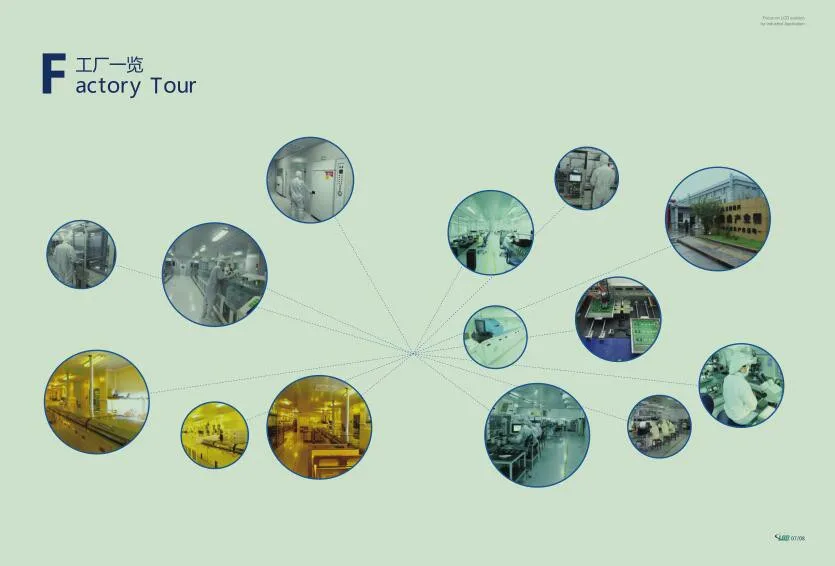

Our Company

 Beijing HTDISPLAY Electronics Co., Ltd., as one of the professional LCD manufacturers in China, has established a customer supporting network with technical & sales service centers in Shenzhen, Shanghai, Beijing and Hong Kong.


We are located in Beijing Economic Development Zone, We are Manufacturer of LCD&OLED & e-ink products. We are capable to supply hundreds types of LCD&OLED & e-ink product modules with all resolutions and various types of customized LCD&OLED & e-ink product modules. We are always standby to contribute better display solutions to all the customers from at home and abroad.


 Our LCD products are widely applied in following fields: office automation, financial terminals, POS systems, Telecommunications, household electrical appliances, medical equipment, auto electronics, electric power, automatic attendance checking systems, meters, fitness equipment, electronic classrooms, control equipment and others.


Thank you for your attention and look forward to cooperation with customers from all over the world!
best regards
HTDisplay co.,Ltd
Gavin
Mobile/What's app:+8618618189601
QQ: 296829930
SKYPE: aj1689gavin
Mail:gavin at htdisplay.com
www.htdisplay.com

Certifications
Packing & Delivery

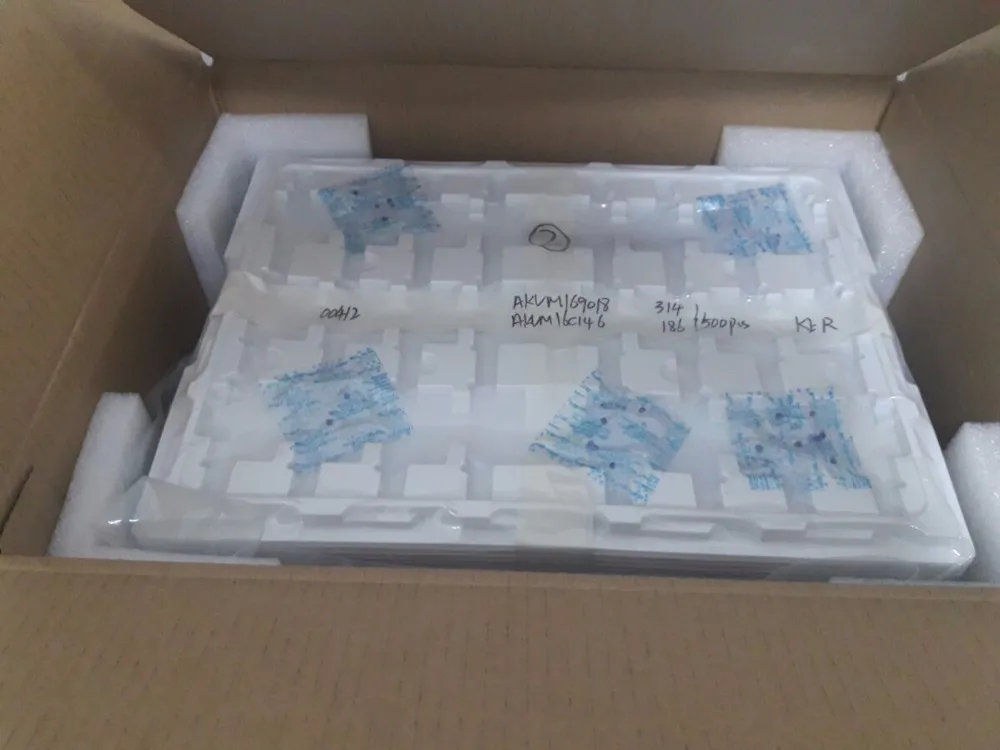

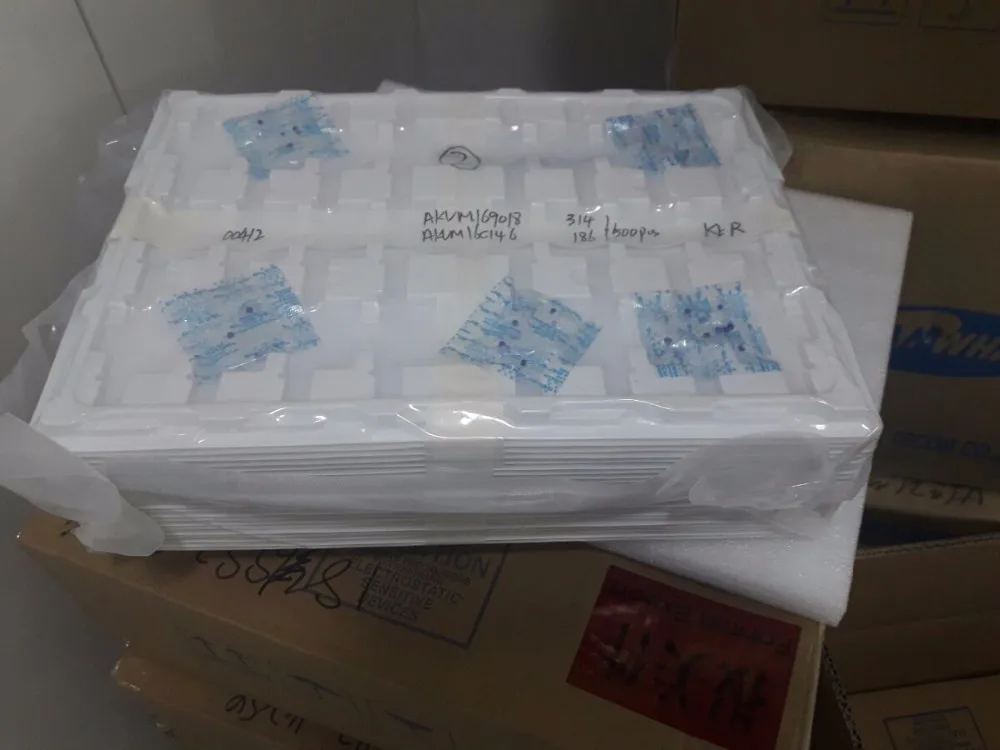

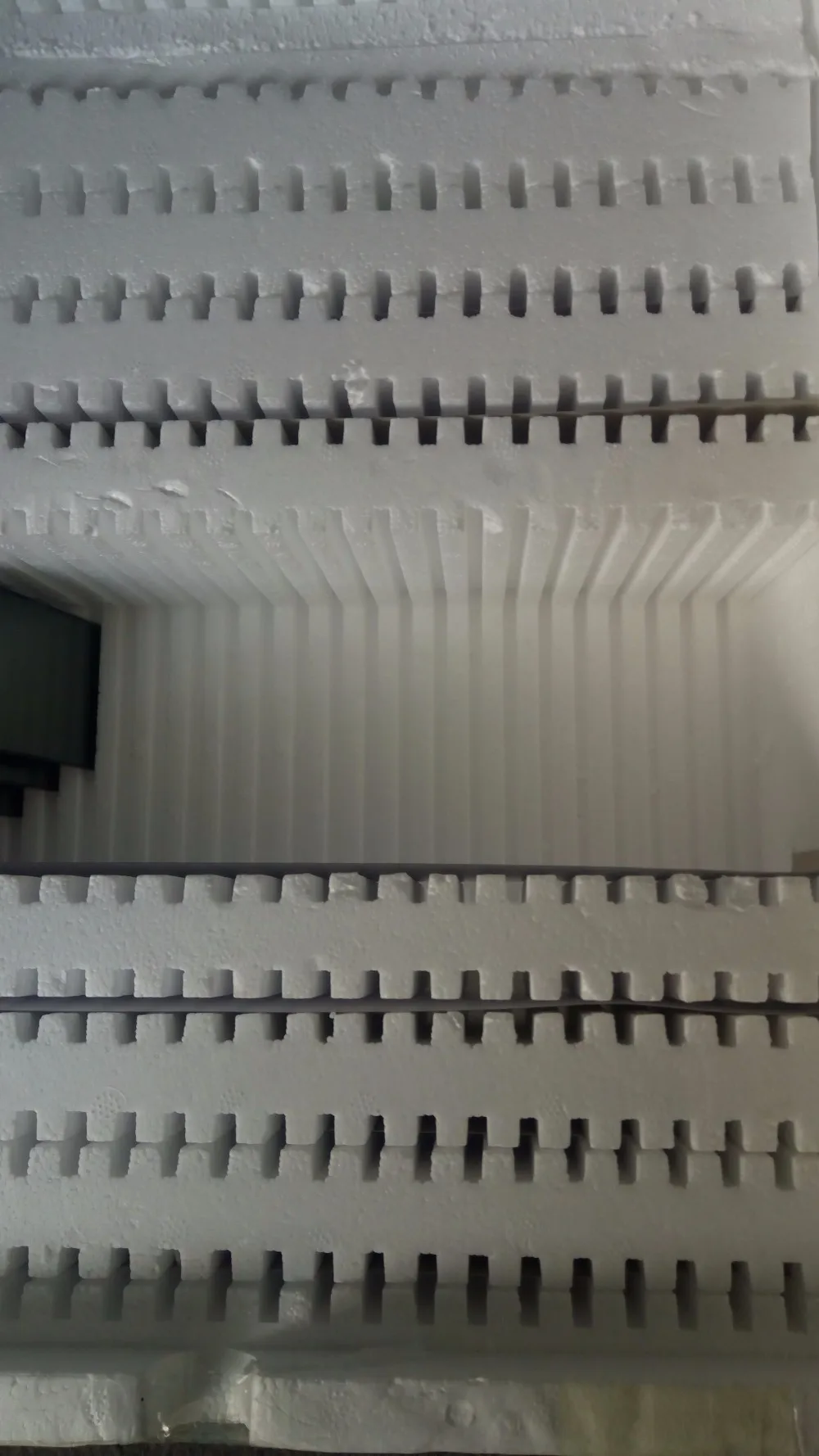

Packing

High quality exporting standard packing !

Delivery

We support fater delivery with the best way to ship the cargos to our customers !

FAQ

HTDisplay with its New Products and Technology on Electronic indurtry and win many awards from the customers form all over the world!
