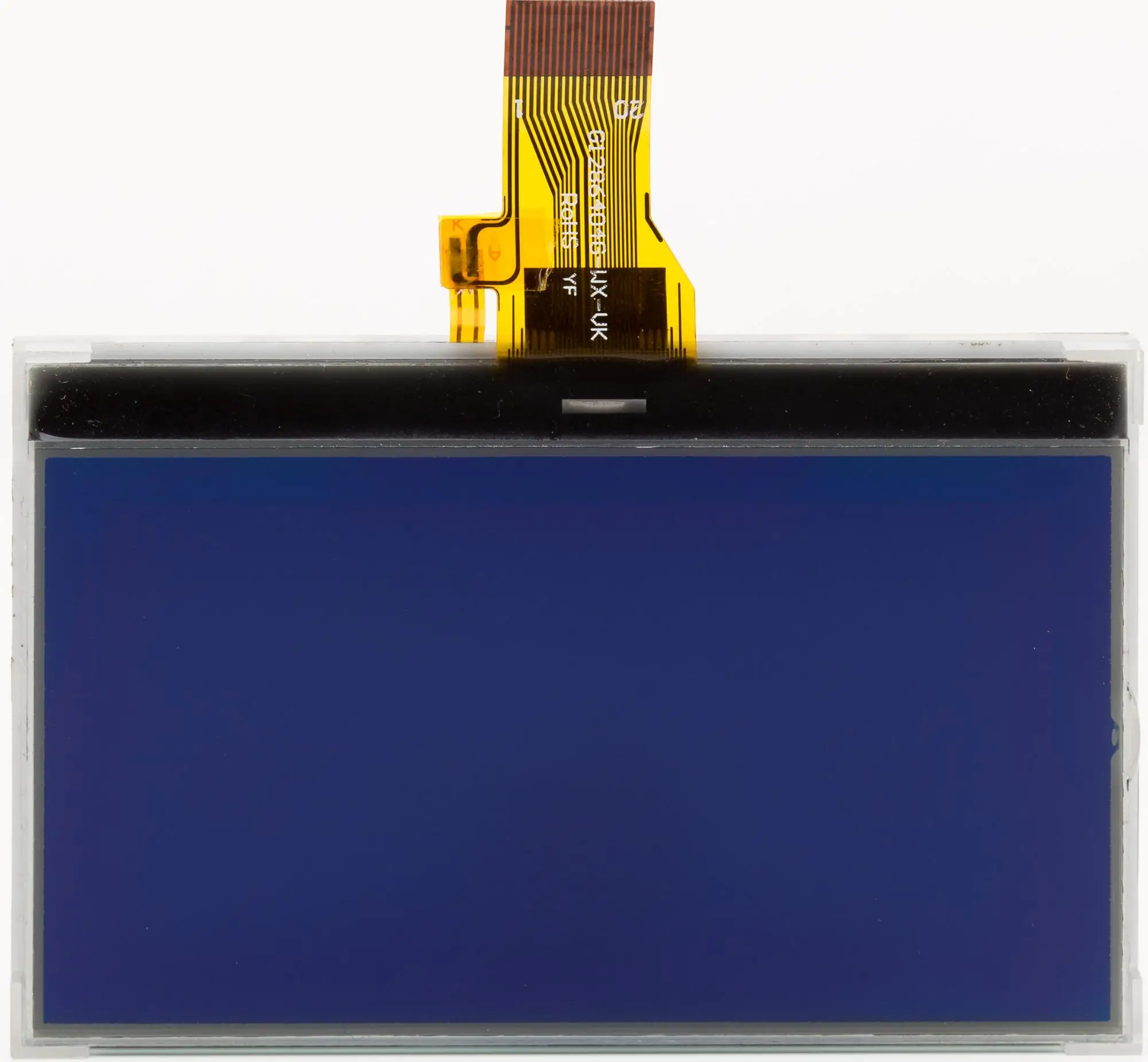

Graphic LCD display

FOB Reference Price:Get Latest Price
  • >=10 Pieces
    US $0.10
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
HTDISPLAY
Model Number:
HG1223204C
Type:
Graphic
Product Name:
Graphic LCD display
Resolution:
122*32
Viewing Angle:
6 O'clock or 12 O'clock
Viewing Area:
59.7*17.8
PCB Outline:
80*36
Structure:
COB
Controller:
SBV1661G-M18
Driver method:
1/32 Duty, 1/5 Bias
Display Mode Options:
Yellow Green
Interface:
8BP
Supply Ability
Supply Ability:
5000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Waterproof Standard Package
Port
BeiJing
Lead Time :
15--25 days

                                                                          Graphic LCD display

Specification



Outline Size:85.0x100.0x13.5mm (with backlight)
View Area:62.0x62.0mm
Display Type:STN/BLUE /TRANSMISSIVE/ NEGATIVE
Viewing Direction:6:00 O'Clock
Operation Voltage:VOP=10.0 V
Drive Method:1/64 Duty; 1/9 Bias; VDD=5.0v
Controller IC:S6B0107 OR EQUIV
Backlight type:White SIDE 4LED,VLED=5.0V;ILED<=80mA
Display Dots Matrix:128x128 matrix Blue color graphic lcd
Operating Temp:–30ºC TO +80ºC
Storage Temp:–30ºC TO +80ºC



Product Description





 1 Working on this over ten years.

 2 High quality and competitive price

 3 Certificate:ISO9001 & ISO140001
 4  More than 20 technicists andExperienced R&D to offer great support.
 5 Do the customization according to the clients requiremen
                 12864 HG1286404G-VK A



Factory Show



Beijing HTDISPLAY Electronics Co., Ltd., as one of the professional LCD manufacturers in China, has          established a customer supporting network with technical & sales service centers in Shenzhen, Shanghai,  Beijing and Hong Kong.

We are located in Beijing Economic Development Zone, specialized in various types of LCD panels of TN, HTN,  STN & FSTN and various types of LCD modules of COB, SMT, TAB, COG, COF and H/S. We are capable to  supply hundreds types of LCD modules with resolutions under 320X240 and various types of custom LCD  panels and LCD modules. We are always standby to contribute better display solutions to all the customers  from at home and abroad.

HTDISPLAY would like to abide by this commitment forever as we seek to promote our development of LCD

, LCM with all the friends from at home and abroad.








Quality Assurance


Application


Packaging






FAQ



Q: What is the MOQ?
A: Generally if you choose the different products, our minimum order qty also will be different.
FORMIKE Brand Portrait 320x240 Resolution TFT LCD 3.5 Capacitive Touch Screen Cheap

Q: What about the delivery time?
 A: The LCD products need 5-6 weeks to be made after receive deposit.



Q: Does your product have any warranty?
A: Yes, we offer 12 months warranty for our products. Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

Q: What's your payment method?
 A: We usually accept the payment methods include T/T, Western Union and Trade Assurance.  50-100% deposit in advance and balance before shipping upon the payment amount. Buyer can choose which payment ways that you accept.

Q:  What's your shipping method? 16x2 lcd module
A: We provide comprehensive shipping methods. 16x2 lcd module
    For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
    For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea  transportation.

Q: Do you offer custom solution?
A:  Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
